The Docker Engine: Architecture and Evolution¶

The Docker Engine is the core server-side technology used to create, manage, and run containers. While often discussed as a single entity, the modern Engine is a modular ecosystem of specialized, high-performance tools.

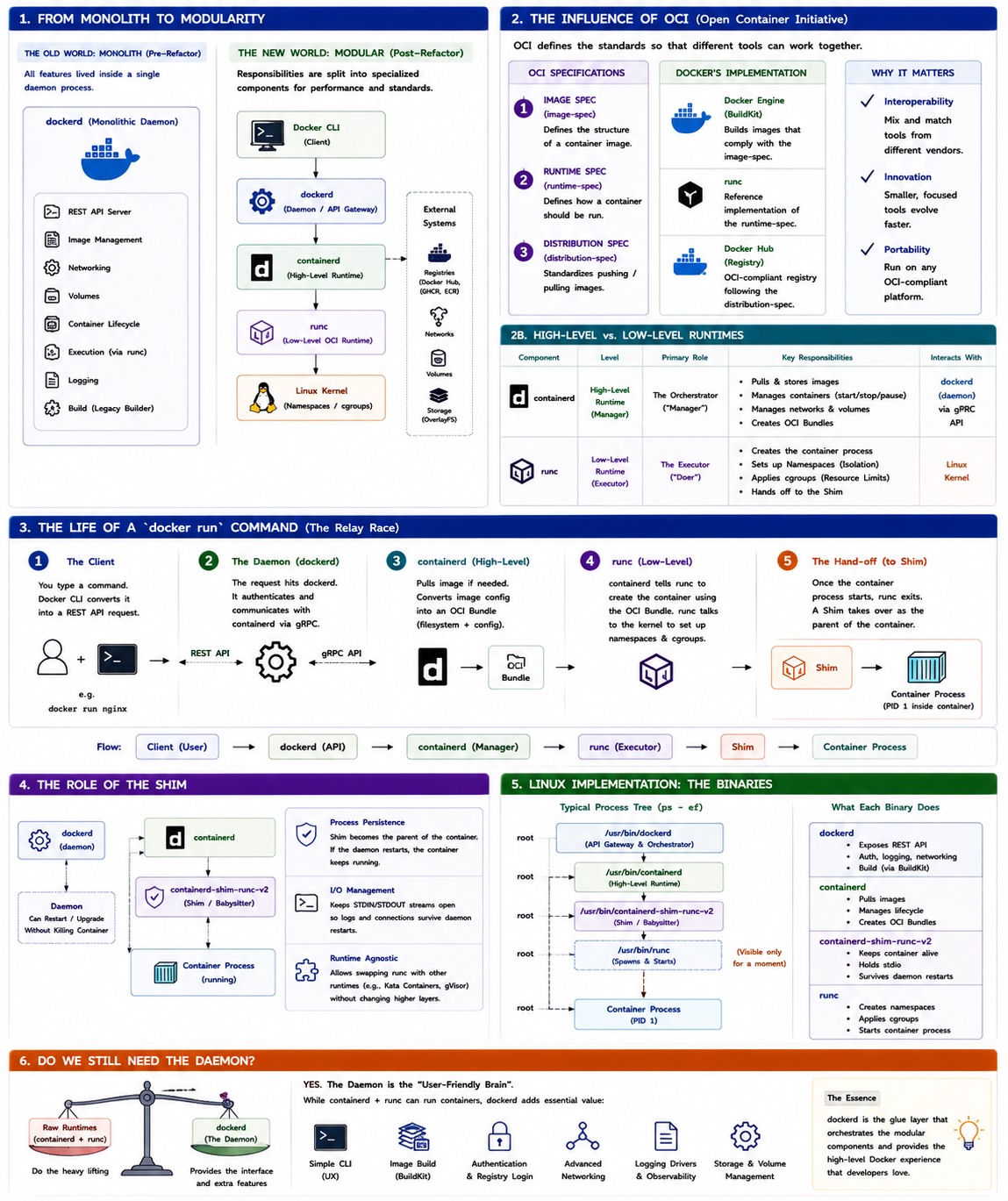

🏗️ From Monolith to Modularity¶

Originally, the Docker Engine was a monolith. Almost all functionality—the API, the image builder, the runtime logic—was baked into a single massive binary called the Docker daemon (dockerd).

To promote industry standards and allow other platforms (like Kubernetes) to reuse its components, Docker refactored the Engine. This "Big Break-up" moved low-level and high-level runtime logic into dedicated, specialized tools.

⚖️ The Influence of the Open Container Initiative (OCI)¶

The OCI is a governance body that ensures container tools are interoperable. They maintain three critical specifications:

Image Specification (image-spec): Defines the structure of the container image file.
Runtime Specification (runtime-spec): Defines how a container should be run (filesystem, resources, etc.).
Distribution Specification (distribution-spec): Standardizes how images are pushed and pulled from registries.

Docker's Implementation: * runc: The reference implementation of the OCI runtime-spec. * BuildKit: The engine used to build image-spec compliant images. * Docker Hub: An OCI-compliant registry following the distribution-spec.

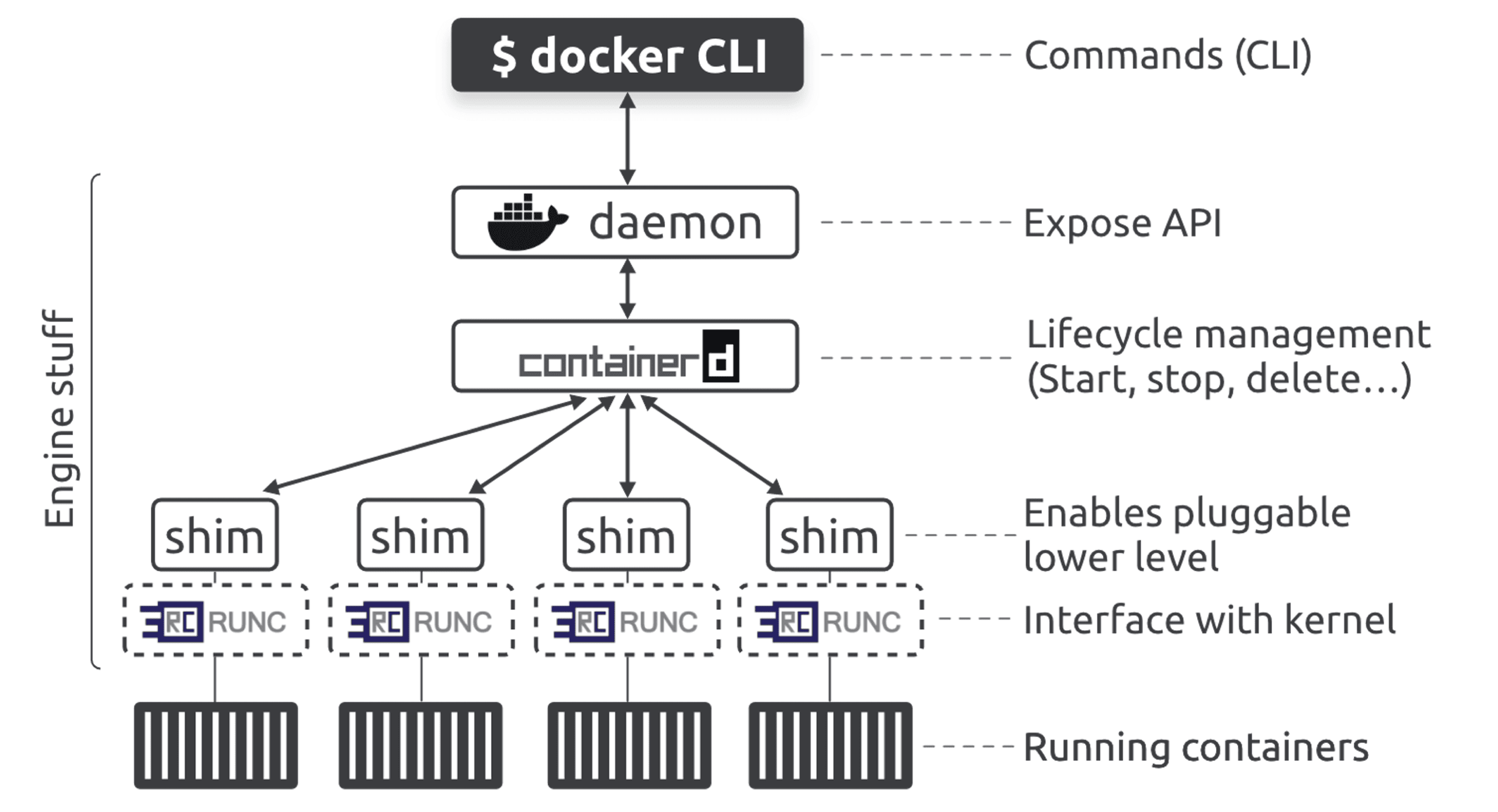

⚙️ High-Level vs. Low-Level Runtimes¶

Modern container management is split into two distinct stages:

Component	Level	Role
containerd	High-Level	Manages the container lifecycle (start, stop, pause), pulls images, manages networks, and handles volumes.
runc	Low-Level	A lightweight CLI that interfaces with the Linux Kernel (Namespaces/cgroups) to actually "carve out" the container.

Note: As of Docker Desktop 4.27.0, image management has been fully offloaded from the daemon to containerd, making the system even more modular and efficient.

🚀 The Life of a "docker run" Command¶

When you execute a command to start a container, a sophisticated relay race occurs:

The Client: The CLI converts your command into a REST API request.
The Daemon: The request hits dockerd. The daemon interprets the intent and communicates with containerd via a gRPC API.
containerd: It pulls the image if necessary and converts it into an OCI Bundle.
runc: containerd tells runc to use the bundle to create the container. runc speaks to the kernel to set up namespaces and cgroups.
The Hand-off: Once the container process starts, runc exits immediately, leaving the container running as a child of a Shim.

🛡️ The Role of the Shim¶

The Shim is a small process that sits between containerd and the container. It is the secret to Daemonless Containers.

Process Persistence: Because the shim becomes the parent of the container, you can restart or upgrade the Docker daemon (dockerd) without killing your running containers.
I/O Management: The shim keeps the STDIN and STDOUT streams open so that if the daemon restarts, the container doesn't crash due to broken pipes.
Runtime Agnostic: Shims make it possible to swap runc for other runtimes (like Kata Containers or gVisor) without changing how Docker or Kubernetes works.

📁 Linux Implementation: The Binaries¶

On a Linux host, you can see the modularity in action by looking at the process tree (ps -ef). You will find these distinct binaries:

/usr/bin/dockerd: The API gateway and orchestrator.
/usr/bin/containerd: The high-level lifecycle manager.
/usr/bin/containerd-shim-runc-v2: The "babysitter" for the running container.
/usr/bin/runc: (Visible only during the split-second of creation).

❓ Do We Still Need the Daemon?¶

If containerd does all the heavy lifting, why keep dockerd?

The daemon still provides the essential user-facing API. It handles image building (via BuildKit), logging, authentication to registries, and advanced networking features that are more "opinionated" than what a raw runtime like containerd provides. It is the user-friendly wrapper around the complex, modular engine underneath.
